SSC1 LED Fog Light Kit for 2020-2022 Subaru Outback

SSC1 LED Fog Light Kit for 2020-2022 Subaru Outback

Regular price $520.00
Regular price Sale price $520.00
Sale Sold out
Shipping calculated at checkout.

Introducing the first high-performance aftermarket fog light replacement for 6th gen Outbacks - our custom dual Diode Dynamics SSC1 kit. Popular off-road fog light replacements such as the Diode Dynamics SS3s are second to none, but are incompatible with the current Outbacks, which are equipped with vertical LED fog lights. Our bolt-on, powder coated brackets replace the OEM lamps with CAD-designed fitment and allow you to mount two pairs of SSC1 fog lights in their place for maximum performance.

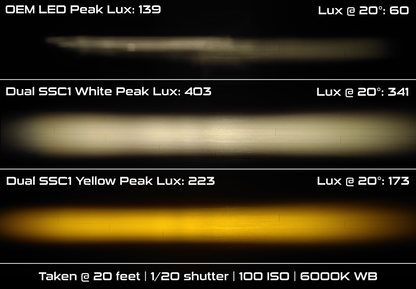

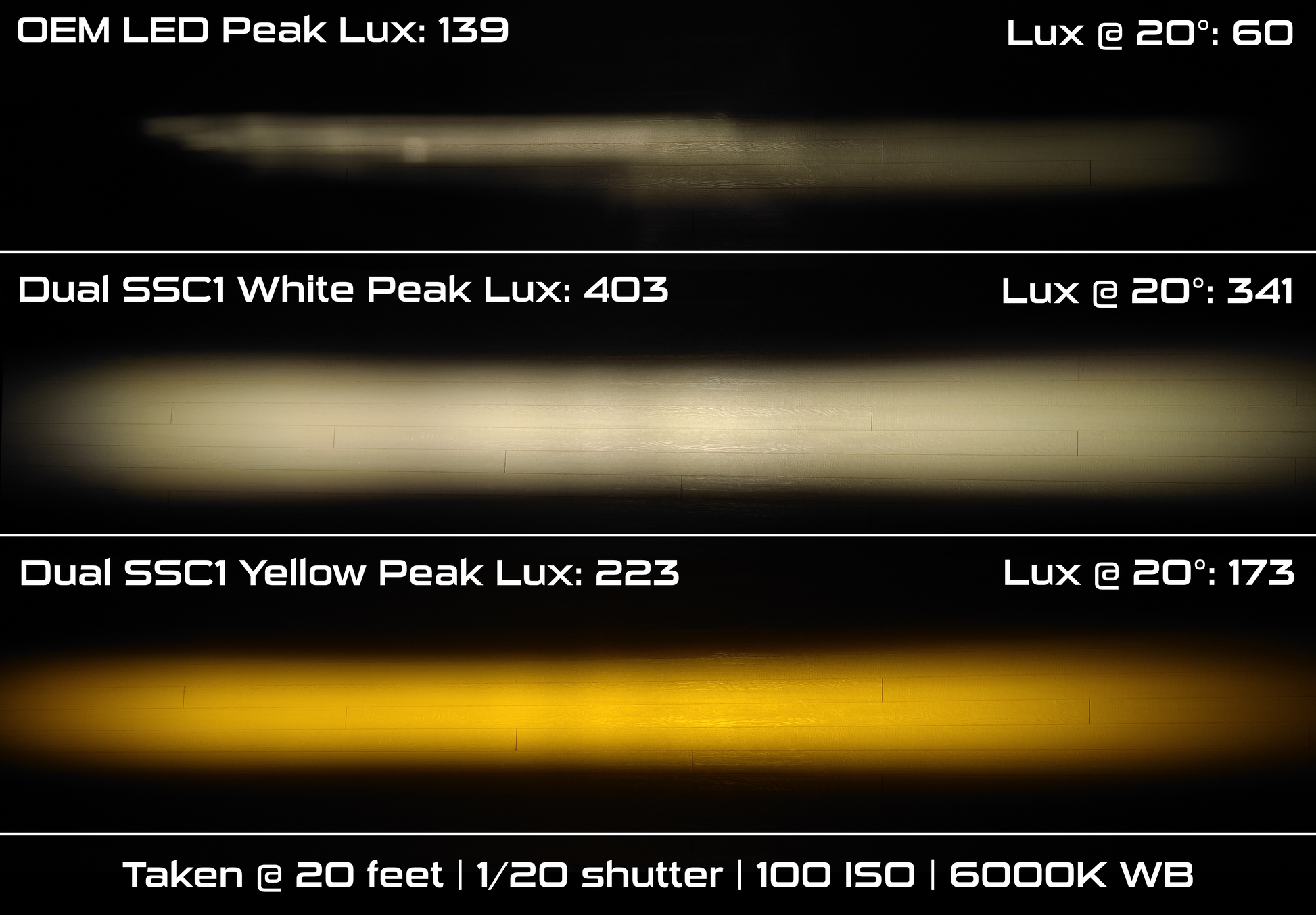

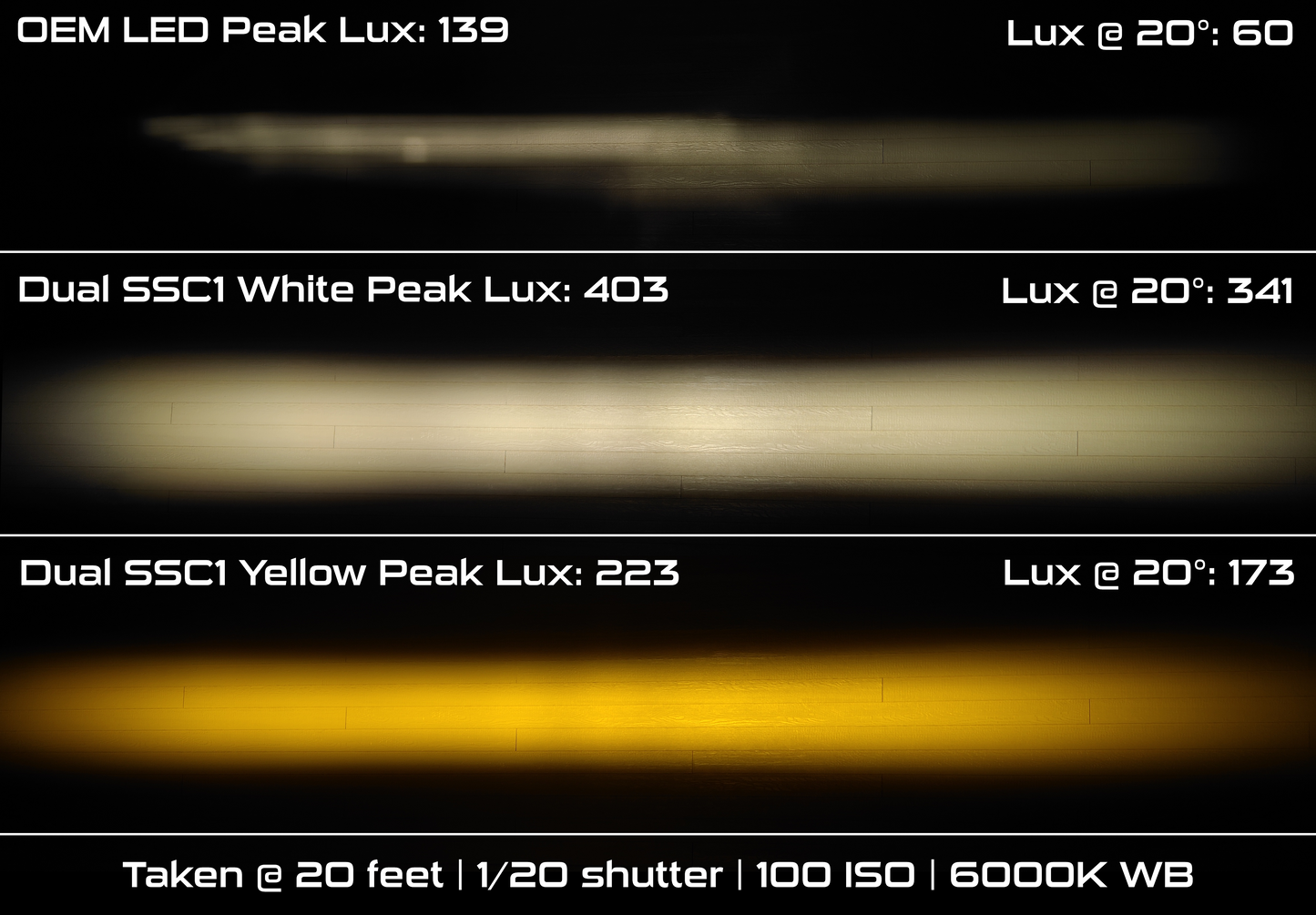

The Diode Dynamics SSC1 SAE Fog is a special version of the SSC1 lamp that uses an OSRAM LED chip and special optics to create an unmatched wide and even beam for street legal fog light use. With our kit, you can have two pods mounted on each side of your vehicle in the OEM fog location for unbeatable performance on your Outback, equivalent to an SS3 MAX pod. A crisp white option to match the OEM LED low beams is available, or you can select a rich amber color instead for that heavy-hitting inclement weather usage. Our quad SSC1 kit puts out up to 2.75 times the amount of light as the OEM fog lights and has a 30° wider overall spread of light than OEM, for maximum coverage when you need it.

The SSC1s also offer a backlight feature for illumination of the front lens (alongside, for example, your parking lights or DRL) without activating the true fog light function. If you would like this feature, we will include a harness with a waterproof wire tap so you can easily connect the backlight to your headlight wiring. You will need to check an OEM wiring diagram to determine the exact wires for your trim and year that provide the function you want the backlight to trigger with (DRL, marker light, low beam, etc.)

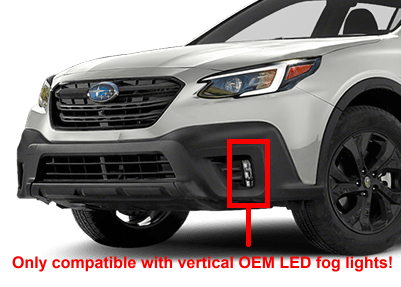

You will need to reuse your OEM bolts/clips for this installation. Kit only compatible with Outbacks equipped with vertical fog lights as shown - Wilderness editions, 2023+ facelifted models, and the Legacy model do not share the same fog lights and are not compatible.

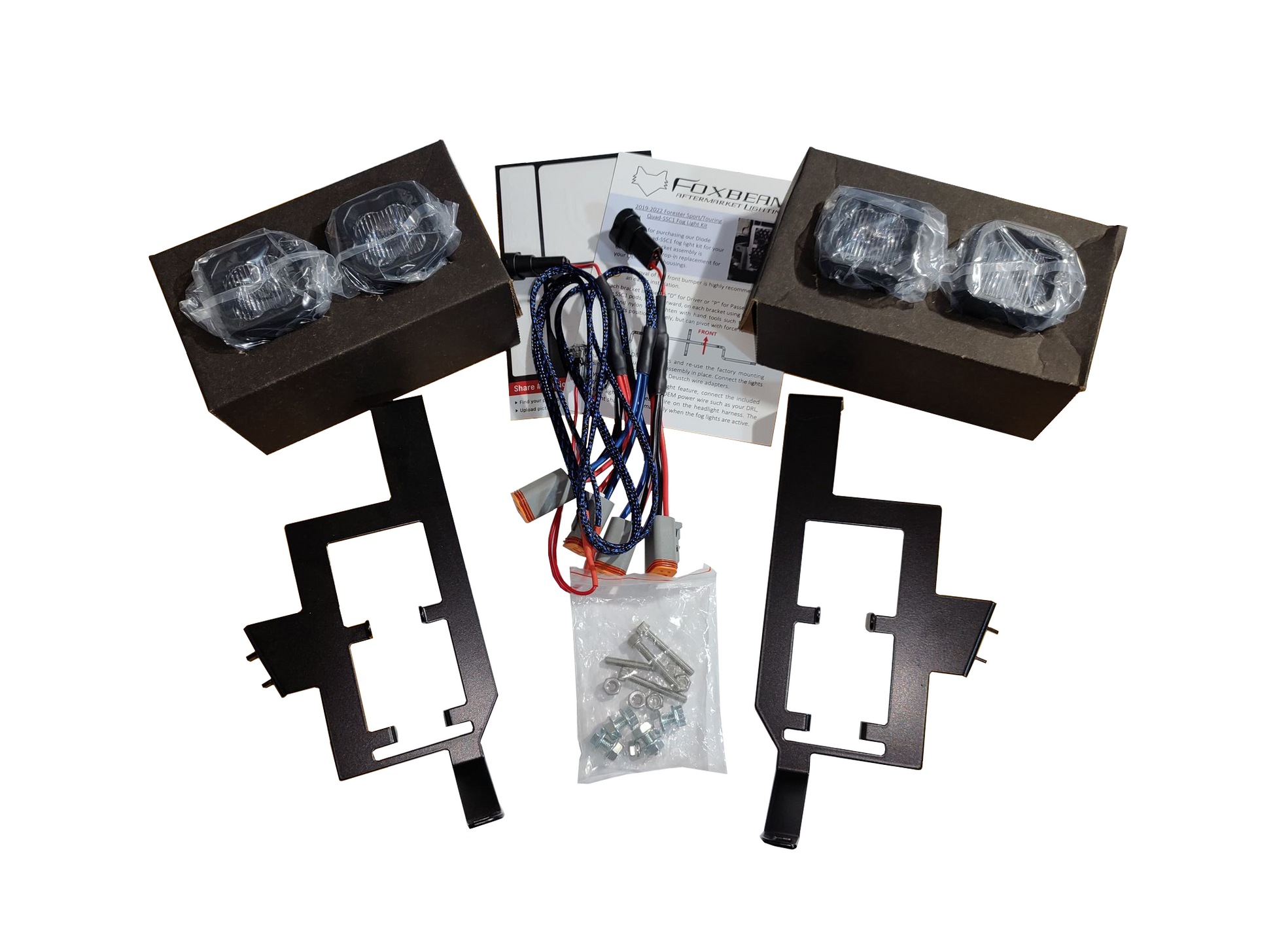

​Kit includes:
2x brackets (left+right)
4x Stage Series C1 pods in selected lens color w/ mounting hardware
2x DT wiring splitters
2X DT to H11 adapters w/ backlight taps
